Simulators¶

gpmap.simulate ships a small zoo of toy-landscape generators that subclass GenotypePhenotypeMap. Each generator enumerates the full Cartesian product of per-site alphabets and fills in phenotypes according to its model. Use them when you need a deterministic landscape for testing fits, benchmarking, or pedagogy.

Shared interface¶

Every simulator takes at minimum a wildtype and a mutations dict. Optional kwargs:

rng: a np.random.Generator. Defaults to np.random.default_rng(). Pass a seeded generator for reproducibility.
site_labels: optional per-site labels.
include_binary: whether to build binary_packed eagerly (default True).

All simulators are GenotypePhenotypeMap subclasses, so the full container API (gpm.data, gpm.binary_packed, to_json, etc.) is available on every instance.

NKSimulation¶

The Kauffman NK model: each site's fitness contribution depends on its K nearest neighbors (wrap-around). Total phenotype is the average per-site contribution.

import numpy as np
from gpmap.simulate import NKSimulation

sim = NKSimulation(
    wildtype="AAAA",
    mutations={i: ["A", "T"] for i in range(4)},
    K=2,
    rng=np.random.default_rng(0),
)
sim.phenotypes.shape  # (16,)

Parameter	Type	Default	Meaning
`K`	`int`	`1`	Neighborhood size, in bits
`rng`	`np.random.Generator \\| None`	`None`	Seed source for the per-neighborhood random table

Rough phenotype range: [0, 1]. Higher K means rougher landscapes with more local optima.

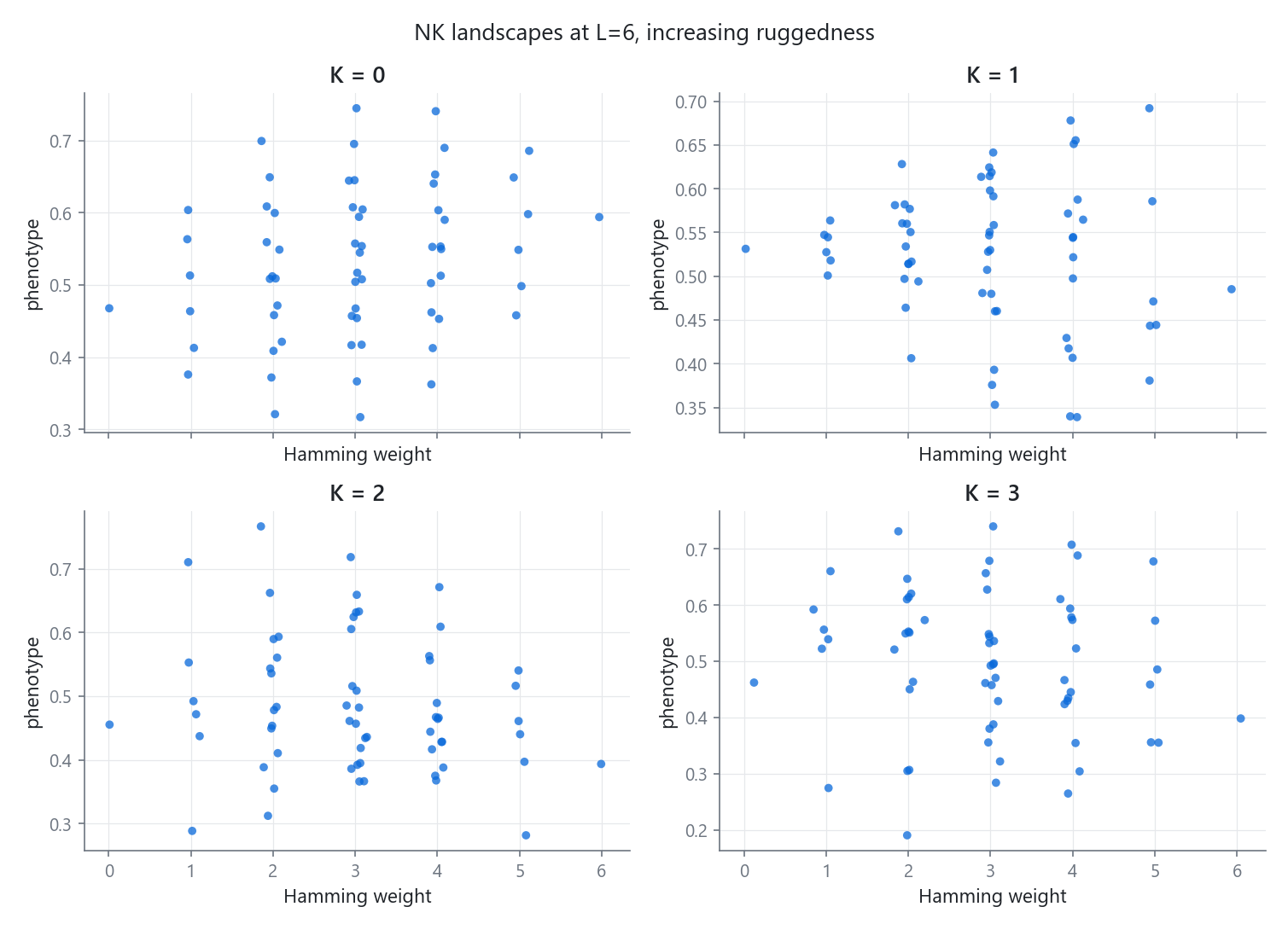

NK landscapes at K=0 (smooth, additive) versus K=3 (rugged, many local optima)

MountFujiSimulation¶

A single-peak additive landscape with optional Gaussian or uniform roughness. The peak is at the wildtype.

from gpmap.simulate import MountFujiSimulation

sim = MountFujiSimulation(
    wildtype="AAAA",
    mutations={i: ["A", "T"] for i in range(4)},
    field_strength=1.0,
    roughness_width=0.1,
    roughness_dist="normal",
)

Parameter	Type	Default	Meaning
`field_strength`	`float`	`1.0`	Slope of the additive component (units: phenotype per Hamming step from WT)
`roughness_width`	`float`	`0.0`	Standard deviation (`"normal"`) or half-width (`"uniform"`) of the noise term
`roughness_dist`	`"normal" \\| "uniform"`	`"normal"`	Noise distribution

Phenotype is -field_strength * hamming_distance + noise, so the wildtype is the global maximum at 0 + noise.

MultiPeakMountFujiSimulation¶

A max-of-Fujis landscape: pick peak_n peaks at random (subject to a minimum pairwise Hamming distance), build a single-peak Fuji around each, and the genotype's phenotype is the max over those.

from gpmap.simulate import MultiPeakMountFujiSimulation

sim = MultiPeakMountFujiSimulation(
    wildtype="AAAA",
    mutations={i: ["A", "T"] for i in range(4)},
    peak_n=3,
    min_peak_distance=2,
)

sim.peak_genotypes  # list[str] of length 3

Parameter	Type	Default	Meaning
`peak_n`	`int`	`2`	Number of peaks to plant
`min_peak_distance`	`int`	`1`	Minimum Hamming distance between any two peaks
`max_peak_distance`	`int \\| None`	`None` (= `len(wildtype)`)	Maximum allowed pairwise distance
`max_proposal_retries`	`int`	`10_000`	Hard cap on peak-search retries before raising

Retry cap

v1 had an unguarded while loop that could spin forever on infeasible constraints. v2 caps the search and raises RuntimeError with a clear message if it cannot place all peaks.

HouseOfCardsSimulation¶

NK with K = n_bits - 1: every site sees the full genotype, so neighboring genotypes are uncorrelated. The roughest possible NK landscape.

from gpmap.simulate import HouseOfCardsSimulation

sim = HouseOfCardsSimulation(
    wildtype="AAAA",
    mutations={i: ["A", "T"] for i in range(4)},
)

No tunable knobs beyond rng; the K is fixed by the geometry.

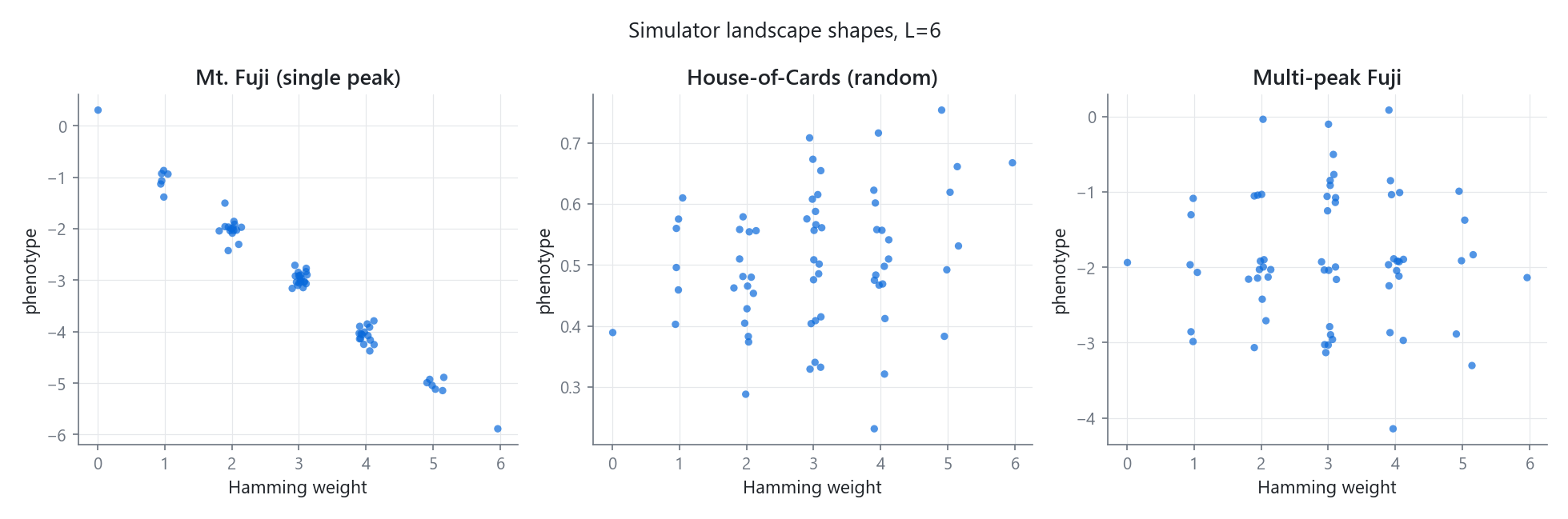

Phenotype versus Hamming distance for a smooth Mount Fuji landscape against a fully random House of Cards landscape

The same contrast on the graph itself: a single-peak Fuji funnels toward one optimum, while House of Cards scatters local peaks (red rings) across the map.

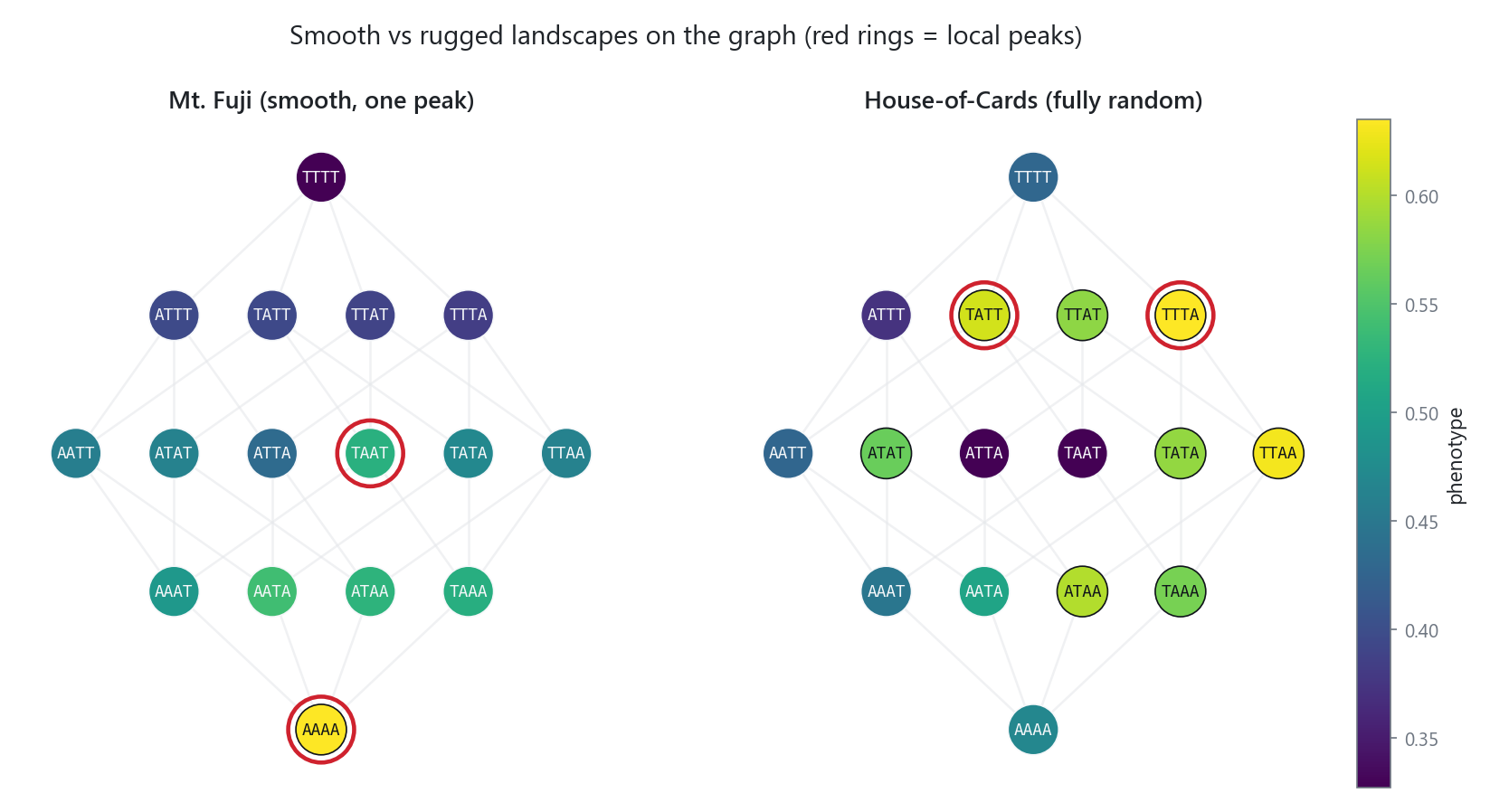

Mount Fuji versus House of Cards drawn as genotype graphs, local peaks ringed in red

RandomPhenotypesSimulation¶

Phenotypes are drawn uniformly from [low, high]. The simplest possible landscape, useful as a null model.

from gpmap.simulate import RandomPhenotypesSimulation

sim = RandomPhenotypesSimulation(
    wildtype="AAAA",
    mutations={i: ["A", "T"] for i in range(4)},
    low=0.0,
    high=1.0,
)

Build from length¶

Every simulator that subclasses BaseSimulation exposes a .from_length constructor for the case where you do not care about the specific alphabet, just its size:

import random
from gpmap.simulate import NKSimulation

sim = NKSimulation.from_length(
    length=5,
    alphabet_size=3,
    kind="DNA",
    K=2,
    rng=random.Random(0),
)

Parameter	Type	Meaning
`length`	`int`	Number of sites
`alphabet_size`	`int`	Per-site alphabet size (>= 2)
`kind`	`"AA" \\| "DNA" \\| "RNA" \\| "BINARY"`	Source alphabet to sample from

The wildtype is the first letter of each site's randomly-chosen alphabet.

Masking: subsample a map¶

gpmap.simulate.mask returns a (true_fraction, GenotypePhenotypeMap) named tuple holding a fraction of the input genotypes, sampled uniformly without replacement:

from gpmap.simulate import mask

masked = mask(sim, fraction=0.5, rng=np.random.default_rng(0))
masked.fraction      # actual fraction kept (rounded)
masked.gpm           # subsampled GenotypePhenotypeMap

Named-tuple return

v1 returned (float, GPM). v2 returns a MaskedGPM named tuple so you can index by name (.fraction, .gpm) instead of remembering the order.

Adding noise to a simulator¶

Simulators expose a .set_stdeviations(sigma) method so you can attach a uniform measurement uncertainty after construction:

sim = NKSimulation(wildtype="AAAA", mutations={i: ["A", "T"] for i in range(4)})
sim.set_stdeviations(0.05)
sim.stdeviations  # array([0.05, 0.05, ...])

For per-genotype noise, build the simulator, copy gpm.phenotypes, perturb, and feed the result back through GenotypePhenotypeMap(...).
