gpvolve.markov

The MSM core: transition-matrix assembly, stationary, spectral analysis, container.

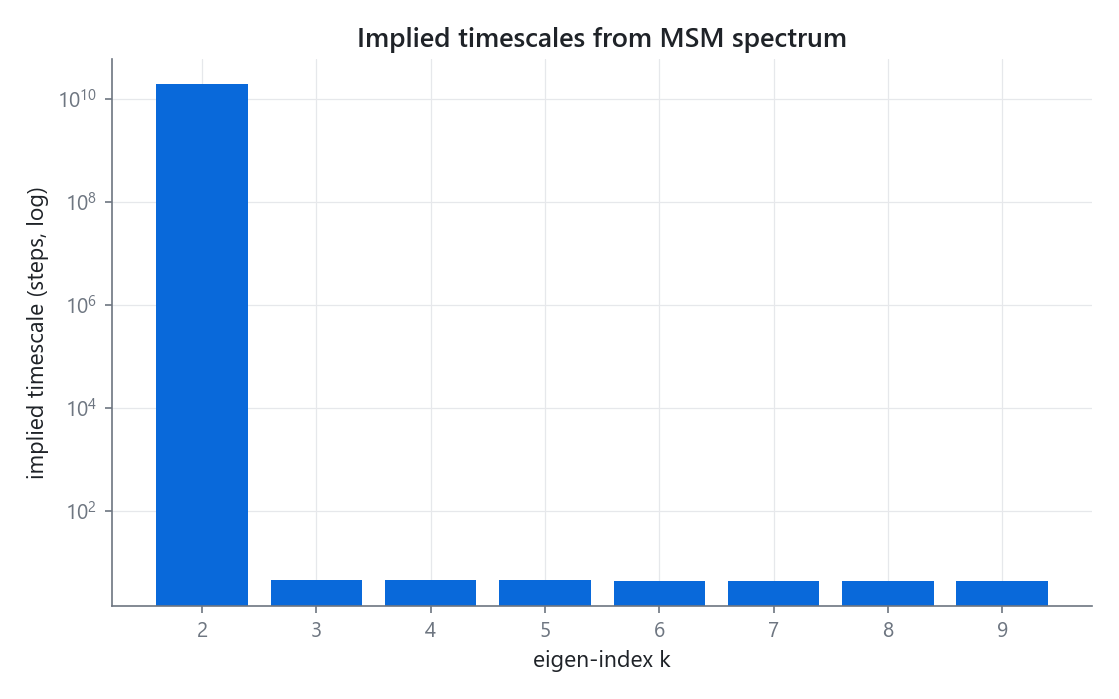

Relaxation timescales of the MSM from the subdominant eigenvalues, with a spectral gap Relaxation timescales of the MSM from the subdominant eigenvalues, with a spectral gap

The implied relaxation timescales come from the subdominant eigenvalues of P; a gap between two of them is the signal that the chain has that many metastable basins. Mean first passage times answer the complementary question of how long, on average, the chain takes to first reach each state:

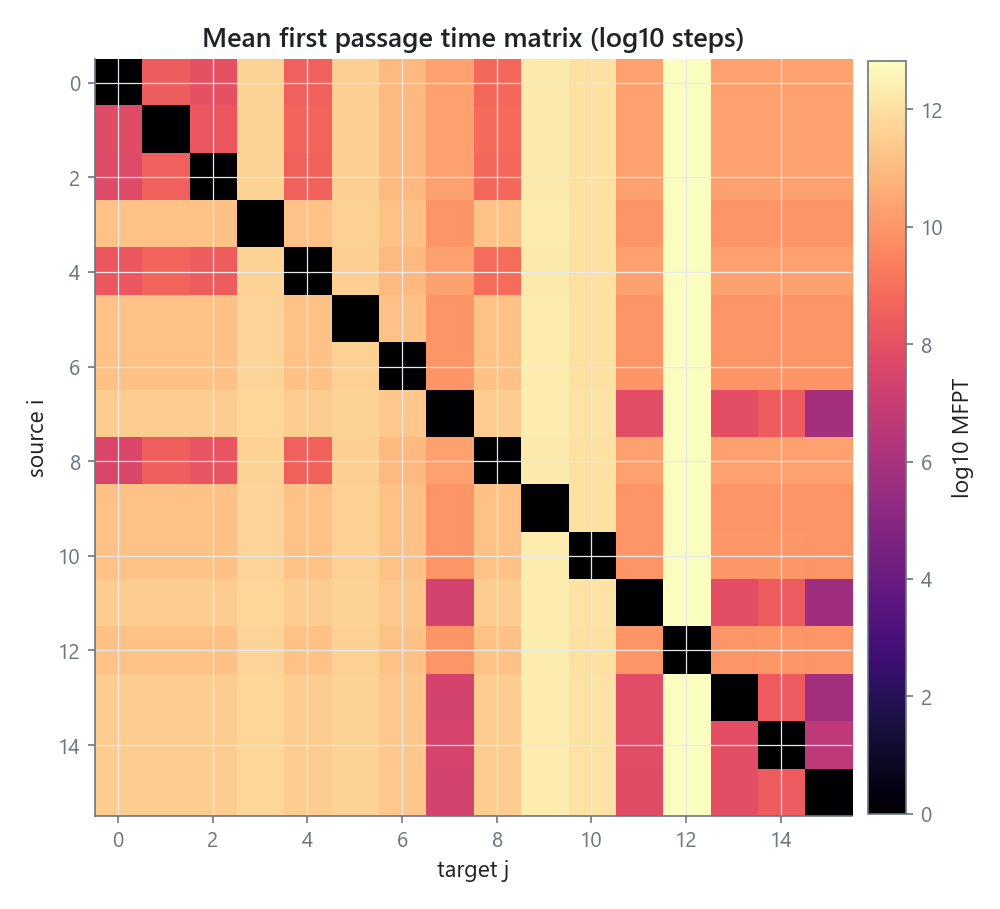

Mean first passage time matrix between all state pairs shown as a heatmap Mean first passage time matrix between all state pairs shown as a heatmap

GenotypePhenotypeMSM

Frozen-state container holding (gpm, graph, transition_matrix, stationary, fixation_model, fixation_params). See SCHEMA section 1. Construct with from_graph(graph, fitness_column=..., fixation=..., **params).

build_transition_matrix(graph, *, fitness_column, fixation, self_loops="absorb", **params) -> csr_matrix

Build a row-stochastic transition matrix from a graph and a fixation model. The only self_loops mode is "absorb": diagonal is 1 - sum_j off-diagonal. Off-diagonal entries are pi_fix / k_max where k_max is the maximum out-degree. Raises NonStochasticError for unbounded kernels, ModelError for missing params.

stationary_distribution(matrix, *, method="auto", max_iter=10_000, tol=1e-12) -> NDArray[float64]

Power iteration on P^T (fast for well-conditioned chains); ARPACK fallback (method="eigs") for ill-conditioned ones. method="auto" tries power first and falls back on ConvergenceError.

eigenvalues(matrix, k=10) -> NDArray[complex128]

Top-k eigenvalues by magnitude. Dense eig for n <= 50; ARPACK for larger matrices.

timescales(matrix, k=10) -> NDArray[float64]

Relaxation timescales tau_l = -1 / log|lambda_l|, slowest first, excluding the stationary mode.

mfpt(matrix, targets) -> NDArray[float64]

Mean first passage time from every state to the target set. Entries indexed by targets are zero.

mixing_time(matrix, *, eps=0.25) -> float

Spectral-gap-based mixing-time bound.

Validation helpers

  • is_strongly_connected(matrix) -> bool
  • assert_strongly_connected(matrix) (raises NonStochasticError)
  • assert_row_stochastic(matrix, *, tol=1e-12) (raises NonStochasticError)
  • assert_nonneg(matrix, *, tol=1e-12) (raises NonStochasticError)
